1
Engine displacement
400
2
Year
1994
3
Trim
400L 2X4 - W947540
4
Parts Catalog
BUMPER / RACKS MOUNTING 2X4 400L W947540 (4926752675A007)
5
Parts Diagram
Parts Catalog
REAR CAB ASSEMBLY 2X4 400L W947540 (4926752675A006)
by
ENGINE MOUNTING 2X4 400L W947540 (4926752675A008)
BUMPER / RACKS MOUNTING 2X4 400L W947540 (4926752675A007)
1
2
2
3
3
3
4
5
5
6
7
8
8
8
8
9
9
10
10
11
12
13
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
32
32
33
34
35
1
RACK REAR
2670138067
Not Available
2
PAD
5810455
$6,29 Unit Price incl. VAT
3
SCREW
7515355
9999999
Not Available
4
FLANGED SCREW
7515304
9999999
Not Available
5
WASHER
7555716
$3,14 Unit Price incl. VAT
6
BUSHING
5010192
$12,59 Unit Price incl. VAT
7
DAMPENER
5410241
5412508
$9,44 Unit Price incl. VAT
8
BRKT LH SUPPORT RACK
5220899067
Not Available
8
BRKT RH SUPPORT RACK
5220901067
Not Available
9
NUT NYLOK
7542327
9999999
Not Available
10
PLUG RUBBER-HOLE .5DIA
5410012
9999999
Not Available
11
SUPPORT FENDER; REAR; MEDIUM GLOSS BLACK
5220902067
Not Available
12
WASHER RUBBER
5410436
9999999
Not Available
13
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
14
RACKFRT.BLK.
2670137067
Not Available
15
REFLECTOR ASSEMBLY; AMBER
2670134
$19,94 Unit Price incl. VAT
16
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
17
BOLT
7512329
$7,34 Unit Price incl. VAT
18
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
19
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
20
SCREW
7512126
$9,44 Unit Price incl. VAT
21
DECAL MACPHERSON STRUT
7074220
9999999
Not Available
22
BUMPER;FRT;BLK(2X4;350)
2670125067
Not Available
23
SCREW
7512399
9999999
Not Available
24
PLUG; FRAME
5810467
9999999
Not Available
25
SCREW
7512208
9999999
Not Available
26
BRKT FENDER/MUFFLER
5222665067
Not Available
27
GUARD ROCK BLK.
5240560067
Not Available
28
BOLT
7512232
$2,09 Unit Price incl. VAT
29
RIVET (10)
7661825
9999999
Not Available
30
TRIM FOOTREST
5431484
9999999
Not Available
31
RIVET
7661637
$2,09 Unit Price incl. VAT
32
FOOTPAD LH SILVER
1040274117
Not Available
32
FOOTPAD RH
1040417117
Not Available
33
FRAME (400-2X4)
1040347067
Not Available
34
PLUG BUMPER CAP
5410794
9999999
Not Available
35
REFLECTOR ASSEMBLY; RED
2670133
9999999
Not Available

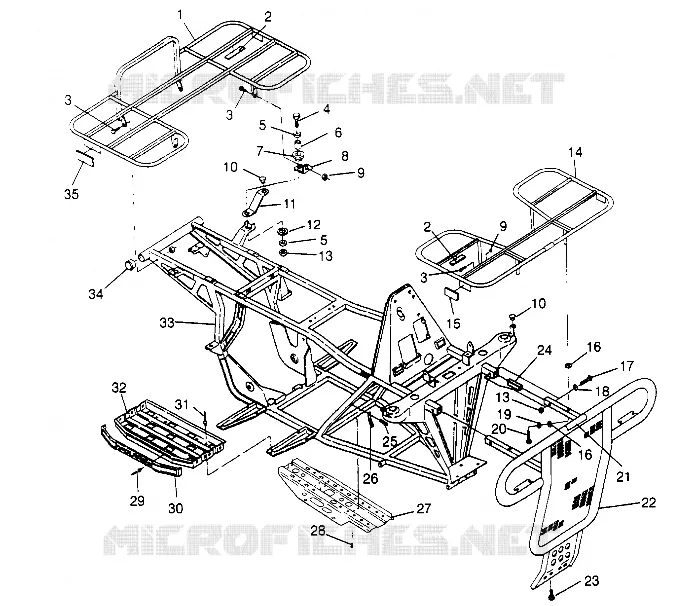

Find the detailed BUMPER / RACKS MOUNTING 2X4 400L W947540 (4926752675A007) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
